RoboFTC Counter-springing Misumi Slide Insert Design

We have designed a Counter-springing Misumi Slide Insert, available to download as a .step file.

The .step file provides an easy way to quickly get started with a bot by offering a well-tested slide insert for your team to use and edit.

How does the insert work?

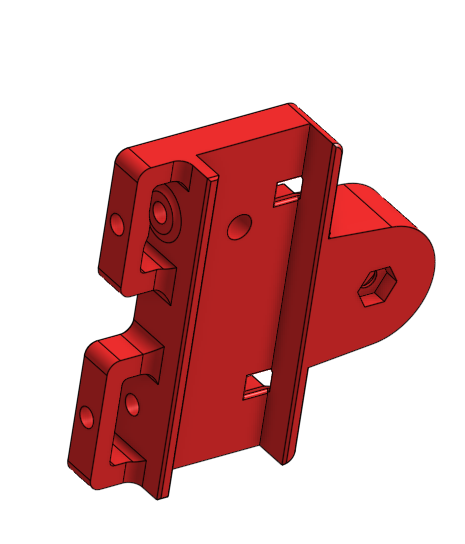

The insert features bearings on two sides—one for continuous string rigging and the other for counter-springing rigging. It is designed to work with Misumi SAR2 & SAR3 Series slides.

Advantages

• Simple power transmission
• Compact form factor
• Lightweight design
• Counter-springing integration
• Easily mountable
